Blackmagicdesign Atem 2 M/E Production Studio 4K
Blackmagicdesign Atem 2 M/E Production Studio 4K
ATEM 2 M/E Production Studio 4K
The World’s Most Advanced Live Production Switchers!
Create stunning multi camera live production with the world’s most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers. You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The more advanced models include features such as up to 20 SDI inputs, SuperSource multi-layer engine, full motion DVE, stinger transitions, larger media pool with full motion clips and up to an incredible 6 auxiliary outputs!
Advanced Live Production
Creative features with advanced technology
Take your live production beyond broadcast quality! ATEM Production Studio 4K has all the features you need for the most innovative live concerts, sporting events, theater productions, conferences and more! When you’re doing live events with super large high resolution screens, then simply switch your ATEM Production Studio 4K to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution!
Innovative Design
Elegant machined metal design in a super compact size!
ATEM Production Studio 4K switchers feature an elegant machined aluminum front panel with dedicated buttons to let you switch auxiliary outputs. You can use the built in video screen to monitor auxiliary outputs or as technical monitoring to help during set up! You get the highest quality video and audio connections that switch virtually all SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats, plus built in multi voltage power supplies so you can take your switcher anywhere in the world!
Powerful Software and Hardware Control
Get innovative software control or choose a hardware panel
Software
ATEM 1 M/E Broadcast Panel
ATEM 2 M/E Broadcast Panel
ATEM live production switchers have the widest range of control options! You get full switcher control from any laptop or desktop computer with the included ATEM software control panel for both Mac and Windows. For demanding live production environments you can add a hardware based ATEM 1 M/E or 2 M/E Broadcast Panel featuring the highest quality buttons, knobs and faders for even faster switching! You also get an SDK for custom control. Only ATEM gives you such a wide rangeof control options!
Develop your own custom control with the included SDK for Mac and Windows.
Highest Quality Connections
Connect to SDI and HDMI equipment in SD, HD and Ultra HD!
ATEM 1 M/E Production Studio 4K
Built in power supply compatible with 110V to 240V sources.
6G-SDI inputs for cameras or decks in SD, HD and Ultra HD.
3x 6G-SDI Auxiliary outputs for clean feeds and monitoring.
HDMI and 6G-SDI program outputs and down converted HD output.
Connect XLR and HiFi audio equipment to built in audio mixer.
Inputs
ATEM Production Studio includes advanced 6G-SDI and HDMI 4K inputs that are SD, HD or Ultra HD switchable so you can connect to virtually anything! Every input supports embedded audio mixing and features a frame resynchronizer so you can use sources without genlock such as consumer HDMI cameras or even computers for live PowerPoint™ presentations! You also get 2 balanced XLR audio inputs for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod®.
Outputs
Get all the outputs you need to record your video master and to broadcast your program to the audience at the event! ATEM includes program and down converted program outputs plus auxiliary outputs allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks! The multi view outputs are 1080i HD so you can use any TV or monitor. You also get a balanced XLR output of your audio mix, which is also embedded into all video outputs.
Multi View Monitoring
Use a single screen for all your monitoring!
16 Cameras ATEM 2 M/E
The advanced ATEM 2 M/E Production Studio 4K model features 2 independent multi view outputs so that you can monitor up to 16 cameras simultaneously across 2 screens!
Other Configurations
ATEM’s built in multi view lets you monitor the switcher’s video inputs on a single SDI monitor or regular HDMI TV! Multi view outputs in regular 1080i HD, so even if your broadcast is in SD or Ultra HD you can still use a standard TV for monitoring! You can customize the multi view layout and also add custom labels. Multi view makes it easy to watch your program, preview, and live sources all simultaneously on a single monitor and you can even choose from 4 different screen layouts!
Creative Transitions
Get dozens of exciting
effects and transitions!
ATEM includes a huge range of real time high quality transitions that are available in all SD, HD or Ultra HD resolutions! Use mixes, dips, wipes and more for amazing broadcast quality live switching! Every transition is instantly available and you get full control of the transition type, pattern, length and other attributes. Create a customized ‘on air’ looks using the large choice of wipe patterns. The ATEM 1 M/E and 2 M/E Production Studio 4K models also include animated stingers and DVE transitions!
Choose from instantly available wipe, mix, dip, DVE and stinger transitions!
Use the DVE in ATEM 1 M/E Production Studio 4K to position, resize, rotate and scale live video, creating professional picture-in-picture effects.
Digital Video Effects
Position, resize, rotate and scale in real time!
The advanced ATEM 1 M/E and 2 M/E Production Studio 4K models include a powerful digital video effects processor. Use this amazing high quality DVE to position, resize, rotate and scale live video all in real time. Create professional picture-in-picture effects with customizable 3D borders, shadows and lighting. Add dynamic DVE transitions to your production with squeeze, push, swoosh and spin effects that displace your live video revealing the next source. You can even use the DVE for graphic wipe transitions!

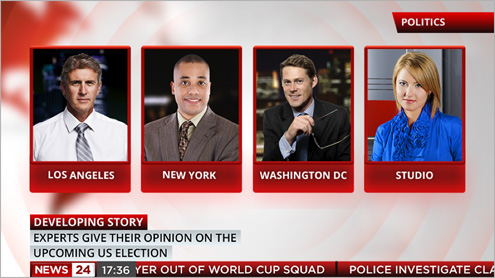

SuperSource
Add multi box compositions quickly and easily with ATEM SuperSource! Available on the ATEM 2 M/E Production Studio 4K, you get a completely separate 5 layer switcher with the power of 4 picture in picture DVEs and 4 keyers that you can assign to any ATEM video input! Imagine using SuperSource for multi camera interviews or picture in picture production while leaving all your M/Es, keyers and DVE completely free for other tasks. SuperSource compositions can also be quickly saved and recalled in an instant!
All popular image formats, such as PNG, TGA, BMP, GIF, JPEG and TIFF are supported.

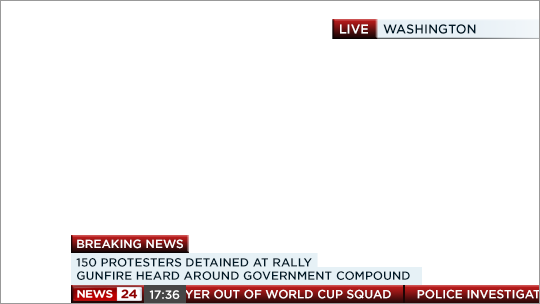

Dual Media Players
Large graphics memory!
ATEM production switchers include media pool memory that lets you download still frames and graphics for keying using the two built in media players. All popular image formats are supported, or you can direct download from Photoshop CC with the included plug-in. The ATEM Production Studio 4K supports 20 Ultra HD RGBA still frame graphics, while the ATEM 1 M/E and 2 M/E Production Studio 4K models support 32 Ultra HD RGBA still frame graphics and 180 frames of real time Ultra HD video or 720 frames of real time 1080 HD video.
Powerful Keyers
Exciting multi layer effects!
ATEM includes amazing quality keying! Get powerful upstream keyers with luminance, linear, pattern and chroma keying that can handle everything from green screen shots to graphics and multi layer special effects. You also get 2 independent downstream keyers for logos, titles and other ‘on air’ graphics. The advanced ATEM 1 M/E and 2 M/E Production Studio 4K models include 4 upstream keyers for a massive 6 total independent keyers, allowing you to build exciting effects of up to 8 real time layers.
Power Macros
The fastest way to set up and automatically trigger events!
To automate complex sequences of precisely timed actions on your ATEM switcher, you can now create powerful shortcuts called macros. Record a sequence of transitions between video sources, including key effects, audio mixer adjustments, camera control settings and more using the ATEM software or hardware control panel. Macros are saved as XML files that can even be edited with a standard text editor so you can combine them together to build sophisticated sequences that would be impossible to execute manually during a live production! That means you can create unique looks for your programs that can be recalled instantly, copied between switchers and used over and over again!
Amazing Ultra HD
Massive 3840 x 2160
video resolution!
The ATEM Production Studio 4K is the world’s first Ultra HD live production switcher! Ultra HD operates at 4 times the resolution of 1080 HD video with a massive 3840 x 2160 frame size! The entire switcher can be set to Ultra HD and all media players, downstream keyers, upstream keyers, transitions, DVE and color generators operate in native Ultra HD. Even if you’re working in SD or HD now, your ATEM Production Studio 4K switcher is always ready for Ultra HD whenever you need it!
1080p602160p30s2160p60
6G-SDI Flexibility
The flexibility to work in SD, HD or Ultra HD
All switchers support 6G-SDI so you can work in the highest quality Ultra HD, and because the SDI connections are regular BNC connectors, you can also select the switcher to any format and simply plug into your SD or HD equipment. 6G-SDI supports any SDI format from SD, HD up to Ultra HD 2160p30. That means 6G-SDI gives you compatibility to work in any format, plus you can switch to Ultra HD for incredible quality that’s 4 times the resolution of HD! Work in SD, 720p, 1080i or 1080p up to 60fps as well as Ultra HD up to 30 fps all on the one switcher!
12G-SDI Performance
When you need high frame rate, fast action production!
The incredibly advanced ATEM 2 M/E Broadcast Studio 4K model goes beyond the 6G-SDI of other ATEM switchers because it includes the latest 12G-SDI for twice the frame rate of the other models, up to an incredible 2160p60. That’s frame rates up to 60 fps in Ultra HD! 12G-SDI also supports all regular 720p, 1080i and 1080p HD video formats, which means you have the switcher you can use today for regular HD work, while being ready for Ultra HD when you need! Only 12G-SDI gives you high frame rate Ultra HD via a single BNC connection that also plugs into all your regular HD equipment!
ATEM 2 M/E Broadcast Studio 4K
The world’s first high frame rate Ultra HD switcher with 12G‑SDI!
When you need absolute performance in live production, the ATEM 2 M/E Broadcast Studio 4K is like no other ATEM switcher! Completely redesigned to operate up to 60 fps in Ultra HD, this new ATEM can easily handle these massive speeds! All connections are native 12G-SDI so you can connect up to 2160p60 video with a single standard BNC cable. This high performance ATEM model also instantly switches to all other HD formats so you can install it today and use it for HD, while being ready for tomorrow. That totally eliminates the cost of moving to Ultra HD in the future because ATEM does it now! This powerful ATEM also includes a larger media pool, 2 native Ultra HD multi viewers, 6 keyers, full DVE, SuperSource and re-sync on each input that all operate in Ultra HD up to 2160p60!
Remote Camera Control
Full camera control from your switcher!
Get full control of your cameras right from the ATEM software control! The new Blackmagic Studio Camera can be controlled via the SDI program feed to the camera, so you can control its built in camera settings and full color corrector, all remotely from the ATEM software control panel! There are two types of control interface, a CCU layout for traditional camera control style, or a color corrector interface which is the same as DaVinci Resolve’s primary color corrector so you can use all your color correction skills from DaVinci Resolve for adding incredible creativity to live production!
Professional Audio Mixer
Live mix multi channel audio from your cameras in real time!
Audio Follow Video
Balance control
Fader Control
External Audio
All ATEM switchers feature a powerful built in multi channel audio mixer! You can mix your camera audio and other video sources from both HDMI and SDI inputs, as well as external audio from the analog XLR and HiFi audio inputs. You can use the ATEM audio mixer for direct input mixing or use audio follow video mixing where the audio automatically crossfades when switching from one input to another. The analog audio inputs are great for microphones, audio mixers, music players and more!
Independent Aux Output
Feed big screens on stage!
ATEM switchers have independent auxiliary outputs that are perfect for feeding big video screens on stage or can also be used to send “clean feeds” without on air graphics to recorders for program mastering. The front panel buttons and screen make it easy to select sources such that you want to send to the aux output. Auxiliary outputs can be selected to any video input, media players, the preview bus, test signals and more! Aux outputs are fantastic for tech monitoring with SmartScope Duo 4K.
Software Control Panel
Switcher control on Mac or PC!
Included free with every ATEM Production Studio 4K Switcher is the beautifully designed ATEM software control panel for both Mac and Windows. With a full visual switcher control panel and parameter palettes for quick switcher adjustments, you can load graphics into the media pool, adjust the audio mixer, control and balance cameras, update switcher settings and more! For the ultimate in portability you can use the ATEM software on a laptop, so you can work easily in small spaces with full control of all the switcher’s features!
Free ATEM Software Control Panel for Mac and Windows.
Professional Broadcast Panels
Add a hardware panel for fast professional switching!
ATEM 2 M/E Broadcast Panel
The 2 M/E panel supports two independent 1 M/E switchers, so you can double your switcher power by simply connecting two switchers to build a massive 2 M/E switcher!
The 2 M/E panel supports two independent 1 M/E switchers, so you can double your switcher power by simply connecting two switchers to build a massive 2 M/E switcher!
When you want fast professional control of your switcher during extremely complex live production, you can add an optional dedicated hardware broadcast panel to your switcher. Choose the super compact ATEM 1M/E Broadcast Panel, or get the ultimate control with the ATEM 2 M/E broadcast Panel! Both panels feature the highest quality buttons, knobs and controls for the most demanding 24/7 live production environment, giving you precise hands on control of all switcher functions.
ATEM 1 M/E Broadcast Panel
Get full control of your switcher using this compact and stylish broadcast grade panel.
Get full control of your switcher using this compact and stylish broadcast grade panel.
Extreme Reliability
Professional hardware based switcher
for incredible reliability.
Broadcast and live production situations demand mission critical reliability! That’s why ATEM Switchers use an internal aviation quality operating system! Cheap computer based switchers interrupt the video if the computer crashes, while ATEM doesn’t have this problem because the computer is only the control panel! With ATEM you still have video output so your live event is protected from any possible computer failure. Simply use other control panels or restart your computer without interruption to the program!
