The DA-816 output rack unit is for connecting to wireless in-ear transmitters, powered monitors or powered house speakers. The DA-816 connects to the MIX-16 or MIX-32 via shielded CAT5e network cable. Each DA-816 provides eight stereo TRS outputs.

The DA-816 provides stereo balanced outputs for 8 personal mixes. Flexible SoftRoute™ mix assignments and test tone capabilities, make for quick setup.

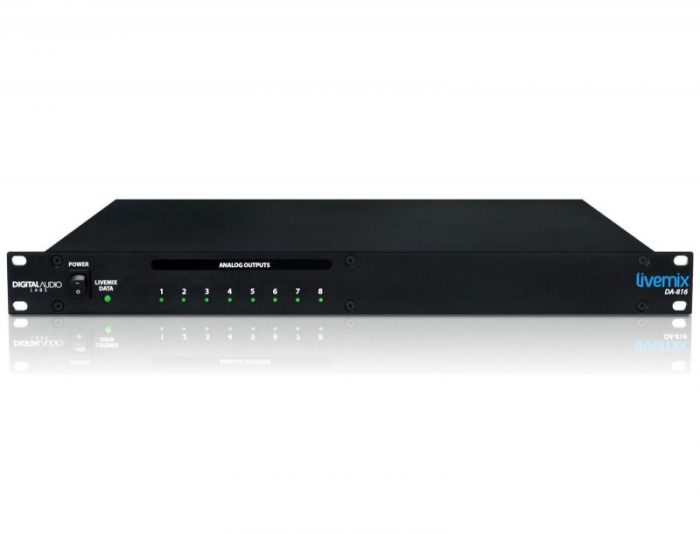

Front panel LEDs indicate a personal mix is assigned to one or more of the outputs. When the Output ID feature is enabled and an output is selected, the front panel LED illuminates and a test tone is sent to the output.

DA-816 ANALOG
OUTPUT UNIT

• Assign personal mixes to analog outputs
• Eight stereo output pairs
  (16 TRS connectors)
• High quality conversion
• Simple setup with a CS-SOLO or CS-DUO
• LED and test tone connection verification and setup aid
